LJY Rebar Cold Extrusion Machine
Short Description:
Rebar Cold Extrusion Technology The Cold Extrusion Machine is made up by a hydraulic Clampy with Cold Pressing Dies and Hydraulic Oil Pump. Clamps Rebar coupler Cold Extrusion Machine Item LJY-32 (16mm-32mm) LJY-40 (36mm,40mm) LJY-All16-40 (16mm-40mm) Motor power 3KW 3KW 3KW Max Oil pump Pressure stress 70Mpa 70Mpa 70Mpa Clamps Tension 65T 80T 80T Oil Pipe Connector M24*1.5 M24*1.5 M24*...
Rebar Cold Extrusion Technology
The Cold Extrusion Machine is made up by a hydraulic Clampy with Cold Pressing Dies and Hydraulic Oil Pump.
Clamps Rebar coupler
|
Cold Extrusion Machine |
|||
|
Item |
LJY-32 (16mm-32mm) |
LJY-40 (36mm,40mm) |
LJY-All16-40 (16mm-40mm) |
|
Motor power |
3KW |
3KW |
3KW |
|
Max Oil pump Pressure stress |
70Mpa |
70Mpa |
70Mpa |
|
Clamps Tension |
65T |
80T |
80T |
|
Oil Pipe Connector |
M24*1.5 |
M24*1.5 |
M24*1.5 |
|
Oil Pump Weight |
80Kg |
80Kg |
85Kg |
|
Press Clamps Weight |
35Kg |
45Kg |
50Kg |
|

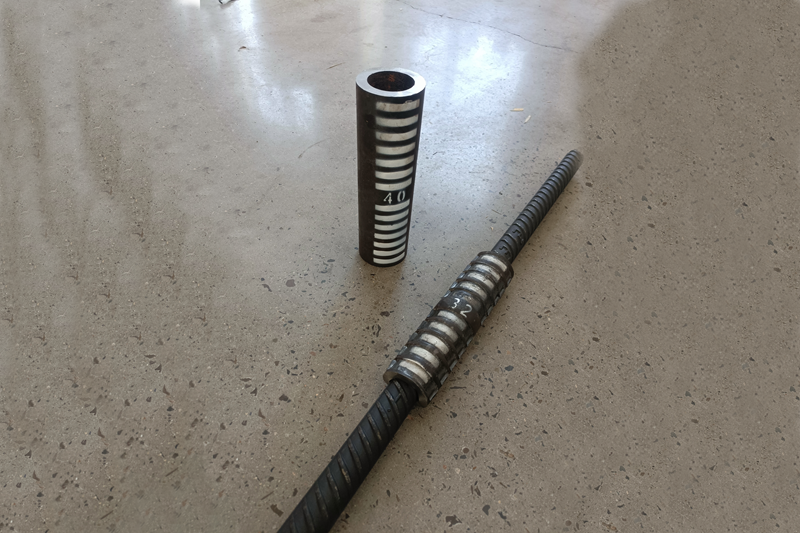

The parameter of the cold extrusion coupler(No.20 steel) |
||||
|
Size |
Out Diameter(mm) |
Wall thickness(mm) |
Length(mm) |
Weight(Kg) |
|
16 |
30±0.5 |
4.5（+0.54/－0.45） |
100±2 |
0.28 |
|
18 |
33±0.5 |
5（+0.6/－0.5） |
110±2 |
0.38 |
|
20 |
36±0.5 |
5.5（+0.66/－0.55） |
120±2 |
0.50 |
|
22 |
40±0.5 |
6（+0.72/－0.6） |
132±2 |
0.66 |
|
25 |
45±0.5 |
7（+0.84/－0.7） |
150±2 |
0.98 |
|
28 |
50±0.5 |
8（+0.96/－0.8） |
168±2 |
1.39 |
|
32 |
56±0.56 |
9（+1.08/－0.9） |
192±2 |
2.00 |
|
36 |
63±0.63 |
10（+1.2/－1） |
216±2 |
2.83 |
|
40 |
70±0.7 |
11（+1.32/－1.1） |
240±2 |
3.84 |
The material of the cold extrusion rebar coupler is No.20 steel.
The features of this technology:
1、Strong intensity connector, stable and reliable; no specific requirements on the weld ability of the rebar;
2、Only needs 1 – 3m to stamp each connector, which is about ten times faster than ordinary welding;
3、Only 1 – 3 kw power of oil pump , which is not limited by power capacity, has flexible structure and suitable for operation on several machines;
YJ650 stamping equipment
4、No flammable gases, not affected by rainy or cold weather;
5、Relieve congestion of the connecting point, facilitated concrete pouring;
6、No professional and experienced worker needed, able to connect changed steel bar of different diameters;
7、Save 80% of connector steel consumption.
The technology is assessed by the Ministry of Construction as “world advanced, high quality, high efficiency, safe, and economical thick diameter distorted steel bar connection technology which can be widely used in the construction industry.”
Cold Extrusion Application Principle:
1.Place it well at the working point.
2.Directly use it to press connection point with screwless couplers to link the two rebar.
